| SPECIFICATION: |

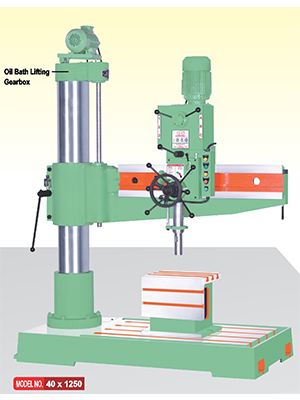

Model 40 x 1250 |
| Drilling Capacity in mild steel |
40 |
| No. of spindle Speed -8 |
80-1500 rpm |
| Working area of base |
1340 x 910 |
| Dia of Column |
230 |
| Dia of RAM |
78 |
| Spindle travel |
250 |
| Spindle nose |
MT-4 |
| Max. Min. Dis. Spindle nose to base |
1350-275 |
| Max. Dis. Spindle nose to Table |
940 |
| Max. Min. Dis. Spindle nose to Column |
1250 |
| Size of Box Table |
400 x 410 x 460 |
| Size of Base (LxWxH) |
1890 x 910 x 210 |
| Overll height of machine |
2300 |
| Spindle Feed by |
Auto Feed , Fine Feed & Hand Operated |
| Drill Head motor |
2 HP(960 RPM) |
| Elevating Motor |
1.5 HP (1440 RPM) |
| Net weight |
1800 Kgs. |
| Lifting Vee Belt |
B-27 |
| Number of Autofeed |
2, 0.04 & 0.08 |
