| SPECIFICATION: |

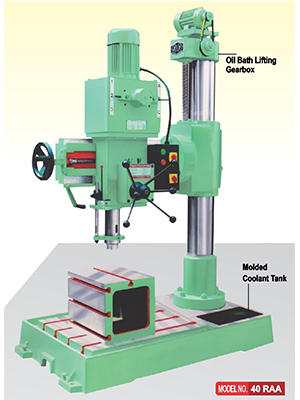

Model 40-RAA |
| Capacity in mild steel |
40 |
| No. of spindle Speed -9 |
80-1500 |
| Number of Autofeed |
0.04/ 0.08 |
| Working area of base |
870 x 760 |
| Dia of Column |
165 |
| Dia of RAM |
78 |
| Spindle travel |
26 |
| Spindle nose |
MT-4 |
| Max. Min. Dis. Spindle nose to base |
925 to 230 |
| Max. Dis. Spindle nose to Table |
620 |
| Max. Min. Dis. Spindle nose to Column |
875 x 360 |
| Size of Box Table |
305 x 305 x 380 |
| Size of Base (LxWxH) |
760 x 1290 x 190 |
| Overll height of machine |
2000 |
| Spindle Feed by |
Hand & Autofeed |
| Drill Head motor |
2 HP(960 RPM) |
| Lifting Motor |
0.5 HP (1440 RPM) |
| Lifting V-Belt |
A-23 |
| Net Weight |
1000Kgs. |
