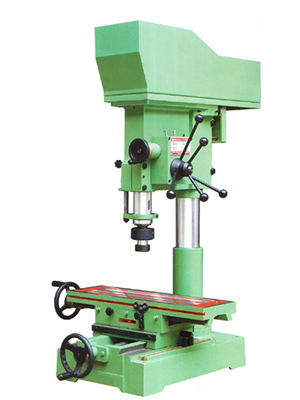

38 m.m. Milling cum Drilling Machine with Auto & fine feed Steel Gears, Swievel Table 45' L/R -Head Lifting Gear Box
| SPECIFICATION: | Model 40-P |
| Capacity in mild steel | 38 |
| Tapping Capacity | 80 to 2600 |
| No. os spindle Speeds | 4+4=8 0.05 |
| Spindle centre to column | 260 |
| Max. travel of spindle | 250 |
| Max. dist. spindle nose to table | 500 |
| Spindle nose bore fitting | MT-4 |
| Table Size | 228 x 765 |
| Diameter of Ram | 78 |
| Base are machined | 475 x 700 |
| Diameter of colomn | 108 |
| Total Height of the Machine | 1600 |
| H.P. of motor | 1.5 |
| RPM | 1440 |
| V-Belt | B 56 |
| Swing | 45 L/R |
| End Mill Cap | 20 |
| Net weight | 500 Kgs. |
