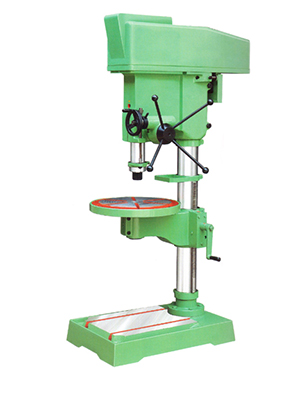

40 M.M. Pillar Type Drilling Machine
| SPECIFICATION: | Model 40-P |
| Capacity in mild steel | 40 |
| Tapping Capacity | 35 |
| No. os spindle Speeds | 80 to 1975 4+4=8 |
| Spindle centre to column | 316 |
| Max. travel of spindle | 250 |
| Max. dist. spindle nose to table | 685 |
| Max. dist. spindle nose to base | 1065 |
| Spindle nose | MT-4 |
| Table Size | 545 |
| Diameter of Ram | 90 |
| Base are machined | 450 x 600 |
| Diameter of colomn | 130 |
| Total Height of the Machine | 1814 |
| H.P. of motor | 2 |
| RPM | 1440 |
| V-Belt | C-67 |
| Net weight | 550 Kgs. |
