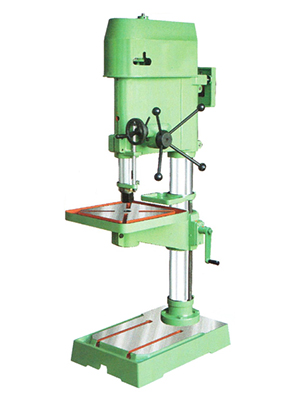

38 M.M. Pillar Type Drilling Machine
| SPECIFICATION: | Model 38-P |
| Capacity in mild steel | 38 |
| Tapping Capacity | 32 |
| No. os spindle Speeds | 80 to 1975 4+4=8 |
| Spindle centre to column | 321 |
| Max. travel of spindle | 250 |
| Max. dist. spindle nose to table | 600 |
| Max. dist. spindle nose to base | 1010 |
| Spindle nose | MT-4 |
| Table Size | 450 x 450 |
| Diameter of Ram | 78 |
| Base are machined | 400 x 400 |
| Diameter of colomn | 120 |
| Total Height of the Machine | 1870 |
| H.P. of motor | 2 |
| RPM | 960 |
| V-Belt | B 64 |
| Net weight | 385 Kgs. |
