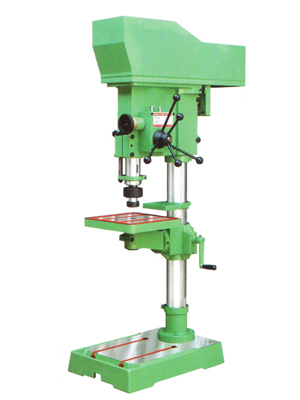

38 M.M. Pillar Type Drilling Machine with Auto Feed S.G. Iron Helical Gear & Fine Steel
| SPECIFICATION: | Model 38-P.A. |
| Capacity in mild steel | 38 |
| No. os spindle Speeds | 80 to 2600 |
| Number of auto feed | 4+4=8 0.05 |
| Spindle centre to column | 260 |
| Max. travel of spindle | 250 |
| Max. dist. spindle nose to table | 740 |
| Max. dist. spindle nose to base | 1050 |
| Spindle nose | MT-4 |
| Table Size | 385 x 385 |
| Diameter of Ram | 78 |
| Base are machined | 350 x 390 |
| Diameter of colomn | 108 |
| Total Height of the Machine | 1778 |
| H.P. of motor | 1.5 H.P. |
| RPM | 1440 |
| V-Belt | B-56 |
| Net weight | 360 Kgs. |
